8. F modeling#
8.1. Characteristics of F modeling#

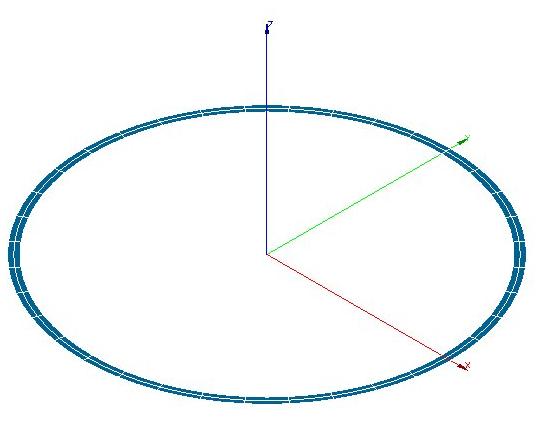

D_ PLAN modeling:
Number of nodes |
\(288\) |
|||
Number of meshes |
\(72\) |
|
8.2. Tested sizes and results#
Component |
Nature of clean mode |
Reference \((\mathrm{Hz})\) |
Tolerance \((\text{\%})\) |
||
\(i\) |
order |
||||
Modes in the plan |
\(\mathrm{FREQ}\) |
\(2\) |
\(\mathrm{4,5}\) |
\(318.36\) |
\(1.4\) |
\(3\) |
\(\mathrm{6,7}\) |
\(900.46\) |
\(1.6\) |
||
\(4\) |
\(\mathrm{8,9}\) |
\(1726.55\) |
\(1.7\) |
||
\(5\) |
\(\mathrm{10,11}\) |
\(2792.21\) |
\(2.0\) |
||
