3. Modeling A#

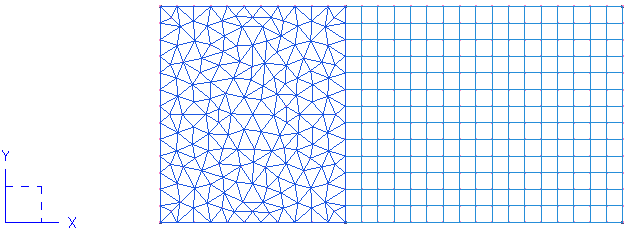

3.1. Characteristics of modeling#

_images/1000000000000273000000E580C4C18B54B7C330.png

3.2. Characteristics of the mesh#

Number of stitches: 541 (320 TRIA3, 221 QUAD4)

Number of knots: 423

3.3. Tested sizes and results#

Identification

Size

Reference

Mass

\(\mathit{TOTALE}\)

2.0475103

Kinetic Energy ( \(t\mathrm{=}1\) )

\(\mathit{TOTALE}\)

2.30344 103

Kinetic Energy ( \(t\mathrm{=}2\) )

\(\mathit{TOTALE}\)

8.70187 103

8.70187 103
